Hydropneumatic suspension fork (air/oil) with remote lockout, rebound adjustment, compression adjustment and independent positive and negative air chambers pressure adjustment.
DESCRIPTION
The Onix is ProShock's legendary suspension fork that was launched in 2009 and was the brand's first to feature Dual-Air technology combined with the TFX hydraulic system, resulting in exceptional damping for the time.
In this new version, Onix is part of the Aríete suspension line, which was inspired by the medieval tool battering ram, used to burst open castle gates and tear down walls. This inspiration provided a very high stiffness suspension fork capable of increasing performance in curves, in high-speed situations and in sprints with a lot of force on the bicycle's handlebars.
Onix uses the TFX hydraulic damping system and Dual-Air technology composed by two air chambers, one positive and the other negative, with independent pressure adjustment between the chambers. In addition to the air chamber pressure adjustments, Dual-Air also allows you to change the suspension behavior up to the end of travel using optional volume reducers.
Onix is recommended for Cross Country (XCO/XCM) and ideal for those looking for a suspension fork with excellent damping and high durability.

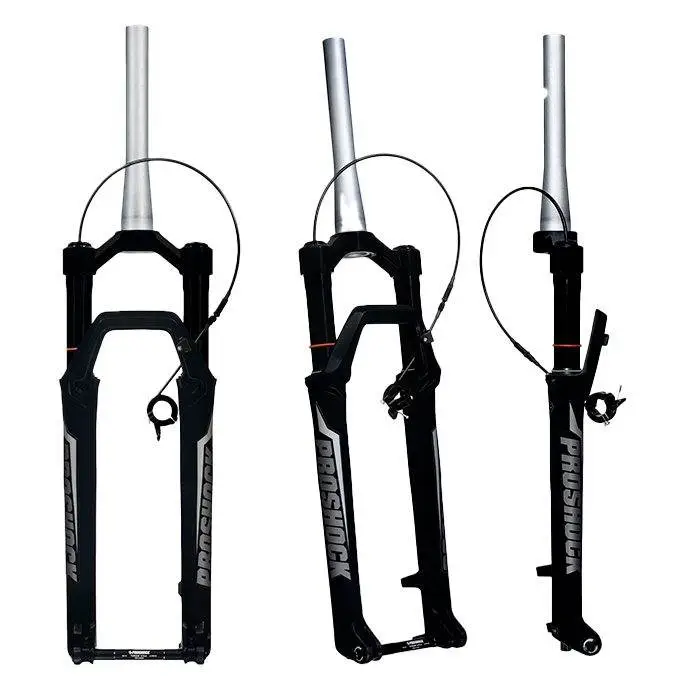

BLACK OR WHITE
with glossy paint
Also check out the item options
for customization!
Available in 7 different colors
with glossy paint
Choose the color that best matches your bike!
DECALS
Available in 5 different colors
To customize your Black Onix with style!
TECHNICAL SPECIFICATION
RIDING STYLE
XCO/XCM
DAMPING SYSTEM
Air/Oil
DUAL-AIR
Positive air chamber pressure adjustment
Negative air chamber pressure adjustment
TFX
Remote lockout
Compression adjustment
Rebound adjustment
STRUCTURE
LOWER LEG
Magnesium alloy
CROWN
Forged high-strength aluminum alloy
UPPER TUBES
32 mm diameter machined high-strength aluminum alloy with black hard
anodizing – Ahd
CONFIGURATIONS
WHEEL SIZE
29
AXLE
15 x 110 mm
STEERER
Tapered 1.1/8” – 1.5”
TRAVEL
100 mm
WEIGHT
1840 g
DIMENSIONS
STEERER
250 mm
FORK OFFSET
44 mm
AXLE-CROWN
505 mm
RECOMMENDED LIMITS
MAXIMUM TIRE WIDTH
29 x 2.4
MAXIMUM ROTOR SIZE
180 mm
RIDER MAXIMUM WEIGHT
130 kg
FEATURES
COLORS
Black, White, Yellow, Blue, Metallic Grey, Orange, Green, Red, Turquoise
OTHER
Black anodized Top Caps
OPTIONAL
(sold separately)
OPTIONAL
(sold separately)
DECALS
Decals with color details: Red, Green, Blue, Orange and Yellow for Black suspensions
TOP CAPS
Anodized Top Caps in colors: Red, Green, Blue, Orange, Gold, Pink, Purple, Turquoise, Smoke and Dark Grey
ADJUST
Optional adjustment with Volume Reducers
TECHNOLOGIES
A system with two air chambers, one positive and the other negative, featuring independent pressure adjustment between the chambers.
